Automatic Tracking System (Option)

The Automatic Tracking System is the system that zooms up on human beings at distant location as detected by the fixed camera and tracks such objects automatically.
EasyTrack will display the moving human beings with larger size image on the tracking screen when the target is too small with details that are difficult to see in the fixed camera images.
In case the image of Automatic Tracking System is required for video evidence, it is possible to record on to a digital video recording system that has been prepared separately.
In the above result, the characteristics of a human being can be recorded with larger and clear images.

Fixed Camera

Automatic Tracking System

A single EasyTrack can control only one tracking camera.
Even though the human being may move across the area of several fixed cameras which are connected to the same EasyTrack, it can be tracked by one tracking camera.

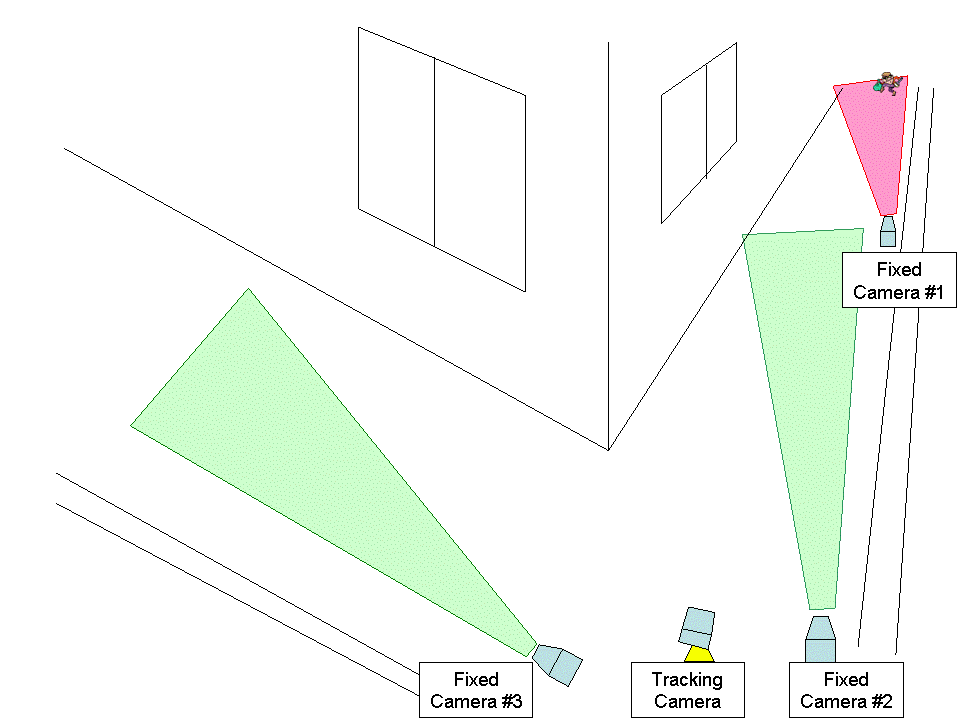

The animation shows the continuous tracking with one tracking camera for a human being walking through the fixed camera #1, #2 and #3

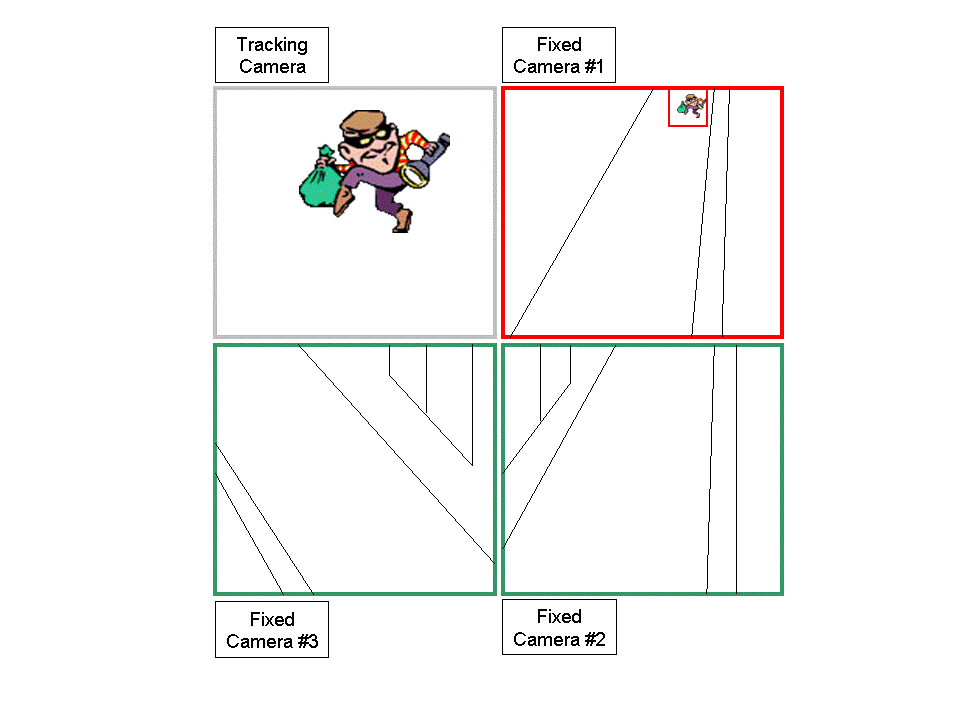

Surveillance Area	Monitor Image

When a specific moving object is specified, the system tracks that moving object.

Fixed Camera

Automatic Tracking Camera
